NVIDIA Jetson Linux 35.4.1

Quick Start Guide

Boot Architecture

SDK Manager

Jetson NX & Nano Document

Linux Compiler Toolchain

DP HDMI porting

Build UEFI with Docker
Build UEFI without Docker

sudo apt update
sudo apt upgrade           --> Keep 20.04
sudo apt install make
sudo apt install build-essential bc
sudo apt install libncurses-dev
sudo apt install flex
sudo apt install bison -y
sudo apt install libssl-dev
sudo apt install libelf-dev
sudo apt install qemu-user-static

mkdir $HOME/l4t-gcc
cd $HOME/l4t-gcc
cp ../Download/aarch64--glibc--stable-final.tar.gz ~/l4t-gcc/.
tar xf aarch64--glibc--stable-final.tar.gz

export L4T_RELEASE_PACKAGE=Jetson_Linux_R35.4.1_aarch64.tbz2
export SAMPLE_FS_PACKAGE=Tegra_Linux_Sample-Root-Filesystem_R35.4.1_aarch64.tbz2
export BOARD=jetson-orin-nano-devkit

tar xf ${L4T_RELEASE_PACKAGE}
sudo tar xpf ${SAMPLE_FS_PACKAGE} -C Linux_for_Tegra/rootfs/
tar xf public_sources.tbz2      --> decompress the file to Linux_for_Tegra/source/public
cd Linux_for_Tegra/
sudo ./apply_binaries.sh
sudo ./tools/l4t_flash_prerequisites.sh
cd source/public
tar -xjf kernel_src.tbz2

tar xf Jetson_Linux_R35.4.1_aarch64.tbz2
sudo tar xpf Tegra_Linux_Sample-Root-Filesystem_R35.4.1_aarch64.tbz2 -C Linux_for_Tegra/rootfs/
cd Linux_for_Tegra/
sudo ./apply_binaries.sh
sudo ./tools/l4t_flash_prerequisites.sh       --> Installing the Flash Requirements
cd source/public
tar –xjf kernel_src.tbz2

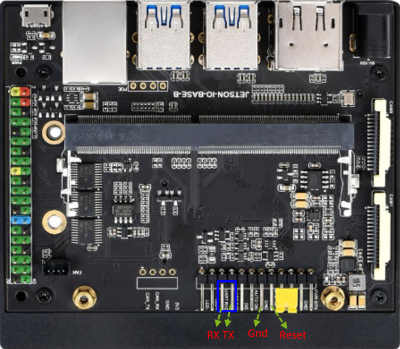

1. Put the target device into Force Recovery Mode.

  A. Power on the carrier board and hold down the RECOVERY button.
  B. Press the RESET button.

2. Using Standard flash

sudo ./flash.sh jetson-orin-nano-devkit-nvme internal

3. Jetson Orin Nano Developer Kit (NVMe):

sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device nvme0n1p1 \
  -c tools/kernel_flash/flash_l4t_external.xml -p "-c bootloader/t186ref/cfg/flash_t234_qspi.xml" \
  --showlogs --network usb0 jetson-orin-nano-devkit internal

4. Jetson Orin Nano Developer Kit (USB):

sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device sda1 \
  -c tools/kernel_flash/flash_l4t_external.xml -p "-c bootloader/t186ref/cfg/flash_t234_qspi.xml" \
  --showlogs --network usb0 jetson-orin-nano-devkit internal

5. Jetson Orin Nano Developer Kit (SD card):

sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device mmcblk1p1 \
  -c tools/kernel_flash/flash_l4t_external.xml -p "-c bootloader/t186ref/cfg/flash_t234_qspi.xml" \
  --showlogs --network usb0 jetson-orin-nano-devkit internalls

export CROSS_COMPILE_AARCH64_PATH=$HOME/l4t-gcc/
export CROSS_COMPILE_AARCH64=$HOME/l4t-gcc/bin/aarch64-buildroot-linux-gnu-
cd ~/workspace/NX/Linux_for_Tegra/source/public
mkdir kernel_out
./nvbuild.sh -o $PWD/kernel_out

~/workspace/NX/Linux_for_Tegra/source/public/kernel/kernel-5.10
make menuconfig

sudo apt update
sudo apt upgrade
sudo apt install open-vm-tools-desktop -y
sudo reboot

Vscode download link

/home/ubuntu/workspace/DEV2715/Linux_for_Tegra/bootloader/t186ref/cfg/flash_t234_qspi_nvme.xml

Kernel Customization

After you compiled your kernel, please update below files!

 source/public/kernel_out/drivers/gpu/nvgpu/nvgpu.ko -->
 Linux_for_Tegra/rootfs/usr/lib/modules/$(uname -r)/kernel/drivers/gpu/nvgpu/nvgpu.ko

 source/public/kernel_out/arch/arm64/boot/dts/nvidia/   -->
 Linux_for_Tegra/kernel/dtb/

 source/public/kernel_out/arch/arm64/boot/Image -->
 Linux_for_Tegra/kernel/Image

cat /proc/device-tree/nvidia,dtsfilename

sudo ./flash.sh -r -k DTB jetson-nano-qspi-sd mmcblk0p1

/home/ubuntu/workspace/DEV2715/Linux_for_Tegra/source/public/kernel/kernel-5.10/Documentation/devicetree/bindings

/home/ubuntu/workspace/DEV2715/Linux_for_Tegra/bootloader/t186ref/cfg/flash_t234_qspi_nvme.xml

(1)  dts to dtb

./dtc -I dts -O dtb -o output_name.dtb input_name.dts

(2)  dtb to dts

./dtc -I dtb -O dts -o output_name.dts input_name.dtb

sudo ./flash.sh  internal
    bootloader/l4t-rootfs-uuid.txt
sudo ./flash.sh  external
    bootloader/l4t-rootfs-uuid.txt_ext
